It is mainly suitable for the cleaning, disinfection, oiling and drying equipment of hospital stomatology department, comprehensive dental clinic, dental clinic, central sterile supply department(CSSD) and operating room.

Features:

  1. All process is automatic.
  2. Air filter: Efficiency ≥ 99.99%, filtration accuracy ≤ 0.2 um
  3. Material: Chamber: high-quality 304 stainless steel plate, cleaning basket: 304 stainless steel, outer decorative cover: 304 stainless steel wire drawing plate
  4. Two loading shelves and it can load different surgical instruments or dental instrument
  5. Thermal insulation: 10mm sound-absorbing and heat-resistant cotton
  6. The printer can automatically print working process and record A0 value.
  7. The washing water tank and disinfection water tank has preheating function which can save time . The whole process can be finished in 30min.
  8. It has the functions of automatic fault detection, fault code display and alarm, fault sound alarm and fault record, and prompts the processing method to ensure the safe operation of the equipment.
  9. The imported high-pressure spray pump can spray and clean the equipment at 360 degrees in all directions without dead angle.

Working Flow:

  • Washing(with detergent)-Rising-Disinfection(with oil)-Drying
  • Washing: water will be injected into chamber via circulating pump and detergent will be injected via dosing pump at the same time.
  • Rinsing: Clean water will be injected to wash instruments
  • Disinfection: Water will be heated to 93℃ to complete heat disinfection. Lubricant will be injected into chamber to lubricate instruments at the same time.
  • Drying: The fan will work to blow hot air into chamber to dry the instruments.
Description

It is mainly suitable for the cleaning, disinfection, oiling and drying equipment of hospital stomatology department, comprehensive dental clinic, dental clinic, central sterile supply department(CSSD) and operating room.

Features:

  1. All process is automatic.
  2. Air filter: Efficiency ≥ 99.99%, filtration accuracy ≤ 0.2 um
  3. Material: Chamber: high-quality 304 stainless steel plate, cleaning basket: 304 stainless steel, outer decorative cover: 304 stainless steel wire drawing plate
  4. Two loading shelves and it can load different surgical instruments or dental instrument
  5. Thermal insulation: 10mm sound-absorbing and heat-resistant cotton
  6. The printer can automatically print working process and record A0 value.
  7. The washing water tank and disinfection water tank has preheating function which can save time . The whole process can be finished in 30min.
  8. It has the functions of automatic fault detection, fault code display and alarm, fault sound alarm and fault record, and prompts the processing method to ensure the safe operation of the equipment.
  9. The imported high-pressure spray pump can spray and clean the equipment at 360 degrees in all directions without dead angle.

Working Flow:

  • Washing(with detergent)-Rising-Disinfection(with oil)-Drying
  • Washing: water will be injected into chamber via circulating pump and detergent will be injected via dosing pump at the same time.
  • Rinsing: Clean water will be injected to wash instruments
  • Disinfection: Water will be heated to 93℃ to complete heat disinfection. Lubricant will be injected into chamber to lubricate instruments at the same time.
  • Drying: The fan will work to blow hot air into chamber to dry the instruments.

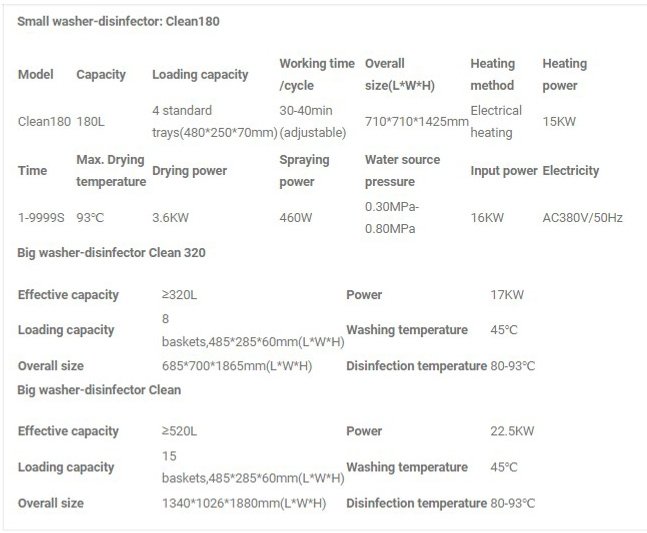

Technical Specification
